Today I added a new pattern to my online store. It's a pattern for a newsboy hat (also called an apple cap, or Gatsby cap), which I prepared in two styles. I couldn't decide which style was better during the testing phase, so I’m offering you both versions (in one pattern) and you can decide for yourself… The pattern for the newsboy hat GO OUT comes in 9 sizes for head circumferences between 40 and 62 centimeters (16" and 24.5").

Střih - kšiltovka / bekovka (dětská, dámská i pánská)

Sewing pattern

There are two versions of this pattern:

  • smooth top
  • shaped top

You will receive pattern files for both of these versions so you can choose which one to sew.


The pattern for the newsboy hat GO OUT is now available in my online store:

SEWING PATTERN - UNISEX NEWSBOY HAT GO OUT

Recommended material

This pattern works best with thicker woven fabrics - softshell, corduroy, or denim, for example. I used a coat fabric with a little bit of elastane for the lighter hat. This makes it very comfortable to wear. However, fabric with elastic fibers is not required.

My tip: If you want to make the sewing process easier, use fabrics that don’t fray. If you choose a fabric that frays, don’t forget to clean seam allowances of all finished seams - this is not repeated in the rest of my sewing tutorial for this hat.

You will need about 40 cm / 16" of 140 cm / 55" wide fabric for any size of this hat. I sewed both of my pieces from leftovers from other projects and you can do it that way too - this pattern is great for processing various scraps. :)

You will also need

You will also need a medium to strong one-sided fusible interfacing. For example:

  • Ronofix, which is a few millimeters high, but flattens after ironing. It’s moderately strong and at the same time retains a certain degree of softness.
  • Heavier canvas interfacing works very well.
  • Novopast, which is not very strong, but the part reinforced by it retains its softness and pliability.
  • Ronar fix, which is strong, therefore great for strong reinforcement of flatter peak (visor).

The degree of reinforcement and the subsequent stiffness of a part is directly proportional to the strength of its interfacing - the heavier the interfacing, the stiffer the part.

You will also need a (halved) hemming elastic band. Find the appropriate length by wrapping it around your head - it should be tight, but not uncomfortably tight. Keep in mind that it will become a bit looser after you sew it to the hat. Each piece is different, so unfortunately I can't tell you exactly how much looser it will be. I use relatively soft bands -  I used a 45 cm / 18" long band and my head circumference is 54 cm / 21 1/4". The hem of the cap goes over the forehead, under the ears, and to the nape of the neck, which is a bit shorter distance than the “classic” head circumference. Therefore, the difference between the length of the elastic band and the circumference of the head may seem too large.

Jak ušít kšiltovku (návod na šití + střih)

My hats are sewn with a straight stitch on a regular household sewing machine. You won't need an overlock machine or any special stitch.


How to choose the right size

The pattern comes in 9 sizes

Choose the appropriate size according to the head circumference. Measure it with a tailor’s tape placed approximately 2.5 cm / 1" above the eyebrows and the ears. This way you should be able to measure the widest part of your head.


Sewing instructions

Pattern layout

1. Position & prepare the pieces

There are a total of 7 pattern pieces:

  • Piece No.1 - Peak/visor (same for both styles of the hat)
  • Pieces No.2 & No.3 - Front pieces (No.2 for the shaped version, No.3 for smooth version)
  • Pieces No.4 & No.5 - Side pieces (No.4 - shaped version, No.5 - smooth version)
  • Pieces No.6 & No.7 - Back pieces (No.6. - shaped version, No.7 - smooth version)

Prepare:

For shaped version:

  • 2x piece No.1 - Peak
  • 1x piece No.2 - Front piece
  • 2x piece No.4 - Side piece
  • 2x piece No.6 - Back piece

For smooth version:

  • 2x piece No.1 - Peak
  • 1x piece No.3 - Front piece
  • 2x piece No.5 - Side piece
  • 2x piece No.7 - Back piece
HOW TO SEW A HAT - PATTERN LAYOUT

All seam allowances are 1 cm / 0.4" wide.

Jak ušít kšiltovku - příprava dílců pro šití
HOW TO SEW A HAT - PREPARE ALL PIECES

Transfer all marks from the paper pattern to fabric pieces - I recommend using small notches (cuts). These marks will help you to put all the parts together correctly.

Peak

2. Interfacing

Reinforce one of the peak pieces. If you only have weaker interfacing, you can reinforce both parts of the peak. If, on the other hand, you have very strong interfacing, it is necessary to cut off the part that would cover the seam allowance along the arch so that there is not too much material in there. You can apply the modified reinforcement to the reverse side of one of the peak pieces.

Jak ušít kšiltovku - příprava kšiltu
HOW TO SEW A HAT – PEAK PIECE PREPARATION
Jak ušít kšiltovku - příprava dílců pro šití
HOW TO SEW A HAT – PIECES PREPARATION

3. Sew the peak

Put the peak pieces together (face side to face side). Sew along the outer edge of the peak (1 cm / 0.4" from the edge).

Jak ušít kšiltovku - příprava kšiltu
HOW TO SEW A HAT - PEAK PREPARATION

To be able to turn the peak face side out (and to keep the edge sharp & undeformed), it’s necessary to grade the seam allowances. Trim the seam allowance of one peak piece to make it only about 2 mm / 0.08" wide. If you can't get a sharp edge after that, you can carefully cut problematic areas of the other seam allowance. But you have to do it carefully so that the seam does not fall apart.

Jak ušít kšiltovku - příprava kšiltu
HOW TO SEW A HAT - PEAK PREPARATION

Turn the peak face side out and iron it thoroughly.

Jak ušít kšiltovku - příprava kšiltu
HOW TO SEW A HAT - PEAK PREPARATION

4. Topstitch the peak for stabilization and an interesting look

To stabilize the shape of the peak, sew (topsitch) a series of arcs with about 1 centimeter / 0.4" wide gaps in between the seams.

Jak ušít kšiltovku - příprava kšiltu
HOW TO SEW A HAT - PEAK PREPARATION

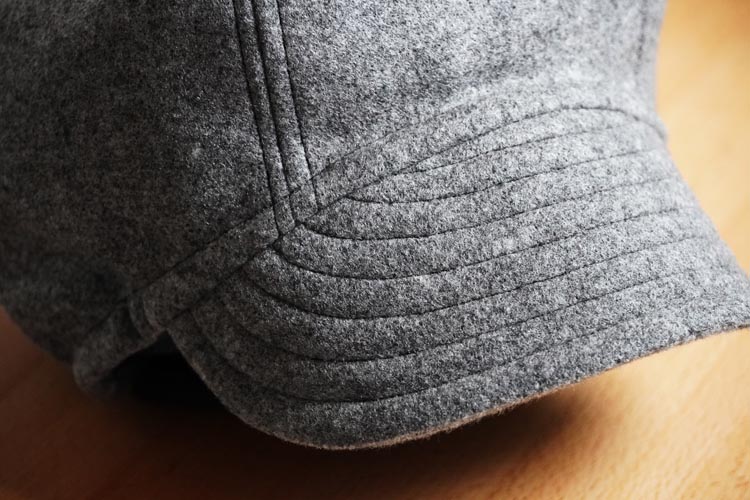

You can topstitch the whole peak or just a part of it… Be creative. :)

Jak ušít kšiltovku - hotový a vyštepovaný kšilt
HOW TO SEW A HAT – FINISHED PEAK
Jak ušít kšiltovku - hotový a vyštepovaný kšilt
HOW TO SEW A HAT – FINISHED PEAK

Front part of the hat

5. Front seams

Let’s connect the front piece with side pieces. Take the front piece and two side pieces. The picture below shows the shape of the bottom hem of the forehead area. Thanks to this curve, you can immediately tell which of the side pieces belongs to which side of the hat. The marks on the edges will also help you with the correct alignment.

JAK UŠÍT KŠILTOVKU - KOMPLETACE PŘEDNÍHO DÍLU S BOČNÍMI
HOW TO SEW A HAT - CONNECT THE SIDE PIECES TO THE FRONT PIECE

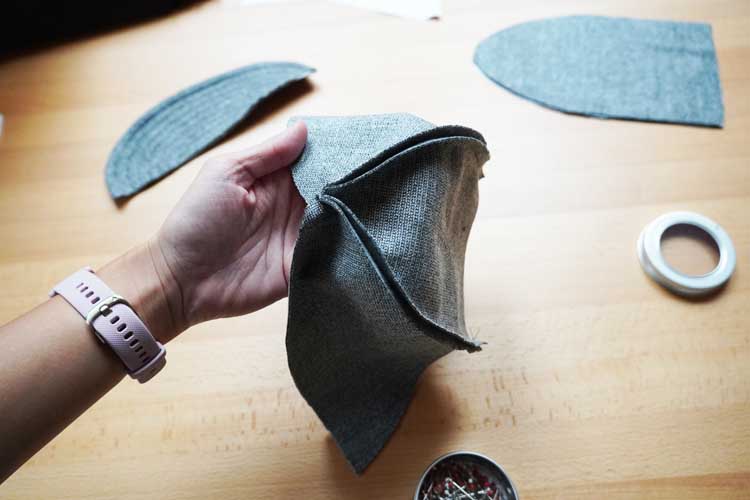

Put the front piece on top of the first side piece (face side to face side) and pin the connecting seam.

It’s important to sew only up to the top of the hat and not further. In the case of the smooth version, the top is clearly visible (it’s sharp), but in the case of the shaped version, parts are rounded at the top, so it is important to follow the marks.

Sew the connecting seam - start at the top and continue towards the bottom hem of the hat.

JAK UŠÍT KŠILTOVKU - KOMPLETACE PŘEDNÍHO DÍLU S BOČNÍMI
HOW TO SEW A HAT – CONNECT THE SIDE PIECES TO THE FRONT PIECE
JAK UŠÍT KŠILTOVKU - KOMPLETACE PŘEDNÍHO DÍLU S BOČNÍMI
HOW TO SEW A HAT – CONNECT THE SIDE PIECES TO THE FRONT PIECE

Pin the other side piece in the same way.

JAK UŠÍT KŠILTOVKU - KOMPLETACE PŘEDNÍHO DÍLU S BOČNÍMI
HOW TO SEW A HAT - CONNECT THE SIDE PIECES TO THE FRONT PIECE

Sew the second side piece to the front piece - sew up to the previous seam (top of the hat).

(Click to zoom in.)

6. Front seams - Topstitching

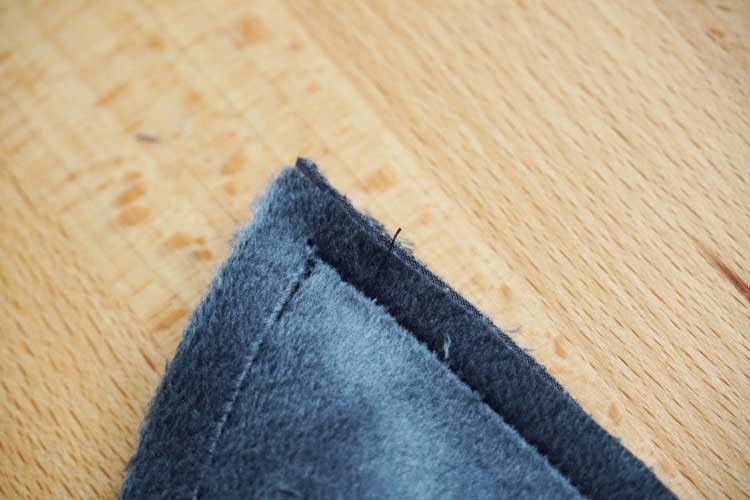

Cut off the top of the seam allowance of the front piece about 2 mm / 0.08" above the seams. This will make it easier to press the seam allowances open.

JAK UŠÍT KŠILTOVKU - přední členící švy - štepování
HOW TO SEW A HAT – FRONT SEAMS – TOPSTITCHING

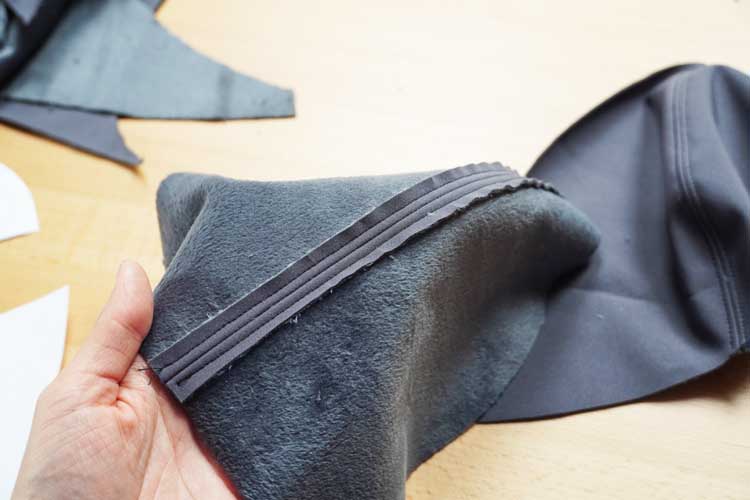

Topstitch both front seams. Sew through the seam allowances (from the face side), about 0.5 - 0.75 cm (0.2"–0.3") from the original seams. This stabilizes and flattens the seams.

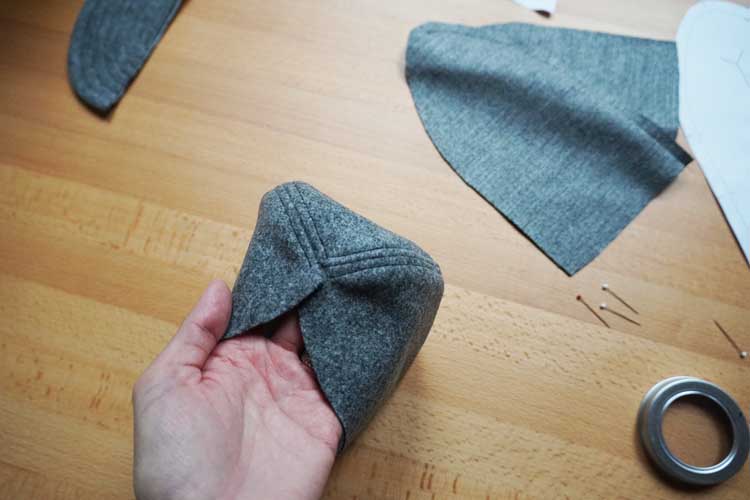

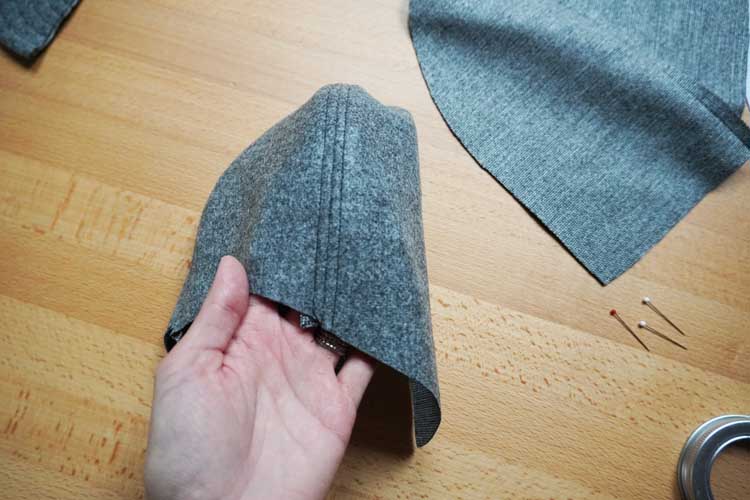

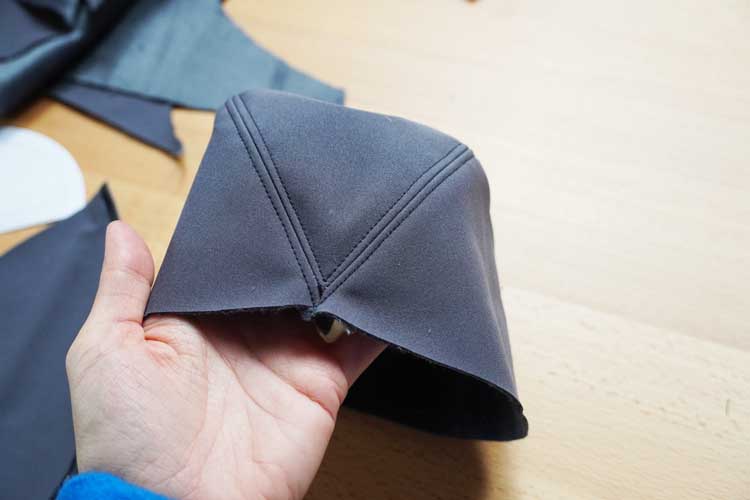

The top of the hat should look like this:

Back pieces

7. Rear center seam

Prepare the two back pieces. Here you need to pay really good attention to which piece belongs to which side.

JAK UŠÍT KŠILTOVKU - ZADNÍ ČLENÍCÍ ŠVY
HOW TO SEW A HAT – REAR CENTER SEAM

The rear center seam is marked with three marks. Rear side seams (which connect the back pieces with the side pieces) have only two marks. After all, you can verify this just by aligning the marks on the back and side pieces.

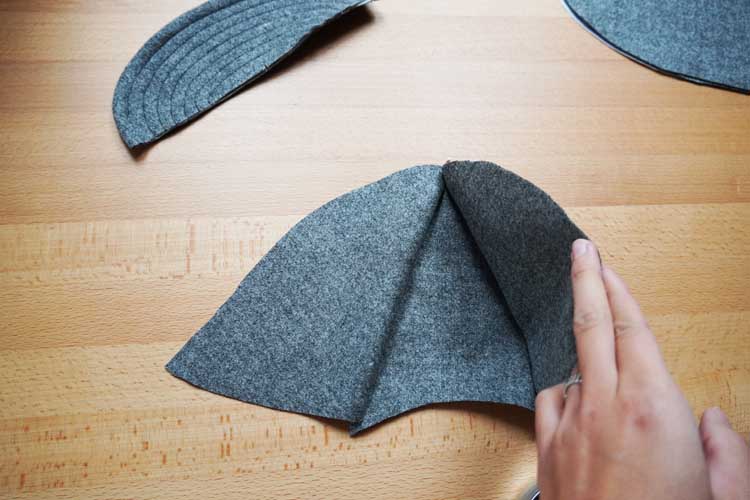

Lay the back pieces on top of each other (face side to face side) and pin the sides with three marks - the rear center seam.

JAK UŠÍT KŠILTOVKU - ZADNÍ ČLENÍCÍ ŠVY
HOW TO SEW A HAT – REAR CENTER SEAM

Sew the rear center seam and don’t go over the top of the hat (follow the marks).

JAK UŠÍT KŠILTOVKU - ZADNÍ ČLENÍCÍ ŠVY
HOW TO SEW A HAT – REAR CENTER SEAM

8. Rear center seam - Topstitching

Press the seam allowances open and topstitch both sides of the rear center seam.

Rear side seams

9. Sew the rear side seams

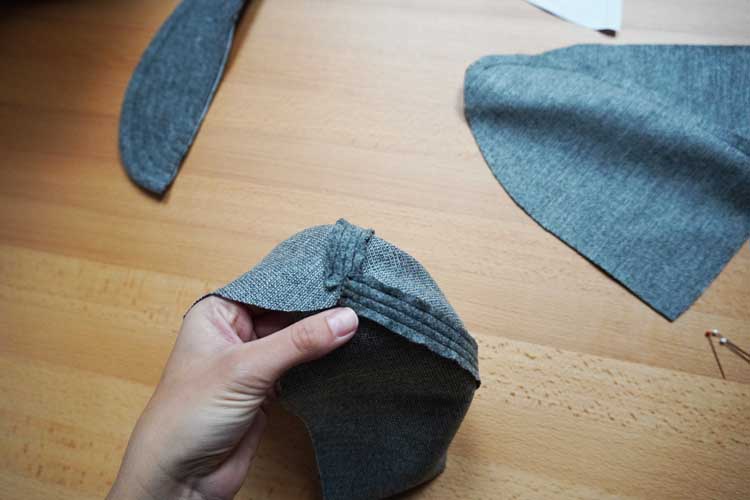

Now you can connect the front and back part of the hat.

JAK UŠÍT KŠILTOVKU - BOČNÍ ŠVY
HOW TO SEW A HAT - REAR SIDE SEAMS

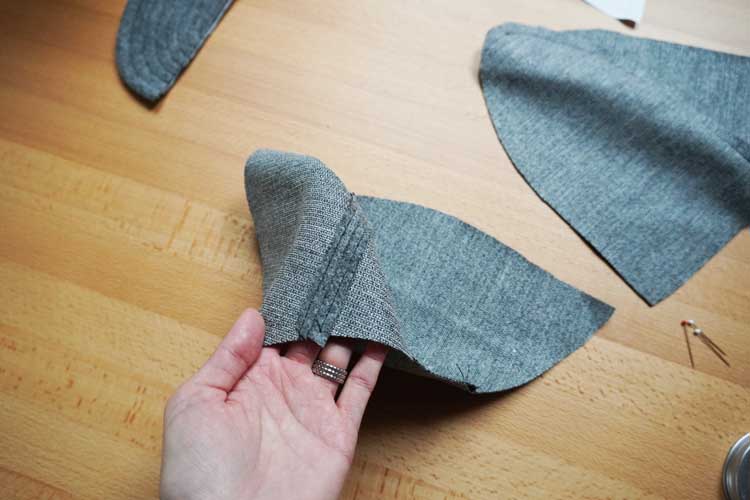

Lay the back part over the front part (face side to face side). All seams must converge at the top of the hat. The seam allowances should be ironed and topstitched, so the pieces should be relatively easy to align.

JAK UŠÍT KŠILTOVKU - BOČNÍ ŠVY - SPOJ U VRCHOLU ČEPICE
HOW TO SEW A HAT – REAR SIDE SEAMS – TOP OF THE HAT

Pin both seams.

JAK UŠÍT KŠILTOVKU - BOČNÍ ŠVY
HOW TO SEW A HAT - REAR SIDE SEAMS

10. Check the top of the hat

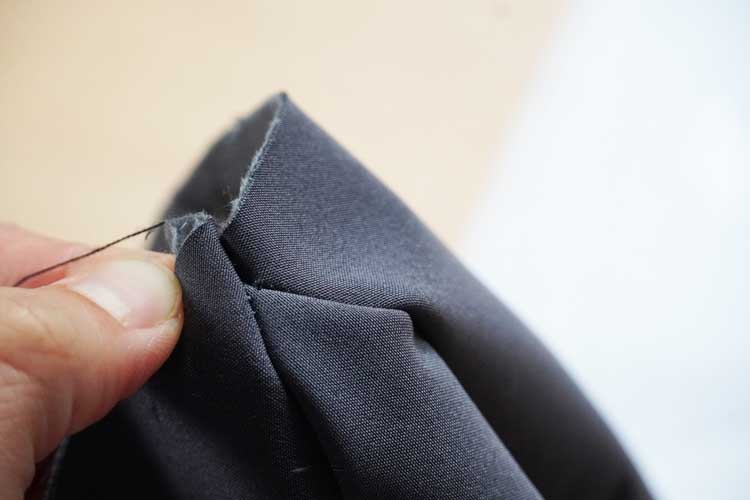

Sew the rear side seams. After sewing (and before topstitching), turn the hat face side out and check that the seam goes directly through the top. If there is a small hole in the top, it means that you sewed too close to the edge. If there is a “weird” pleat at the top of the hat, it means that you sewed too far from the edge (through some other part of the hat). I sewed too close to the edge on my first try (right seam) and I had to fix this (left seam).

JAK UŠÍT KŠILTOVKU - BOČNÍ ŠVY - SPOJ U VRCHOLU ČEPICE
HOW TO SEW A HAT – REAR SIDE SEAMS – TOP OF THE HAT

Check once more that all seams converge at one point…

JAK UŠÍT KŠILTOVKU - BOČNÍ ŠVY - SPOJ U VRCHOLU ČEPICE
HOW TO SEW A HAT – REAR SIDE SEAMS – TOP OF THE HAT

If everything seems fine, you can rip the wrong seam. After that, you should be able to topstitch the last set of seam allowances.

JAK UŠÍT KŠILTOVKU - BOČNÍ ŠVY - SPOJ U VRCHOLU ČEPICE
HOW TO SEW A HAT – REAR SIDE SEAMS – TOP OF THE HAT

11. Rear side seams - Topstitching

Topstitch both sides of both rear side seams. This is what the smooth version should look like:

JAK UŠÍT KŠILTOVKU
HOW TO SEW A HAT

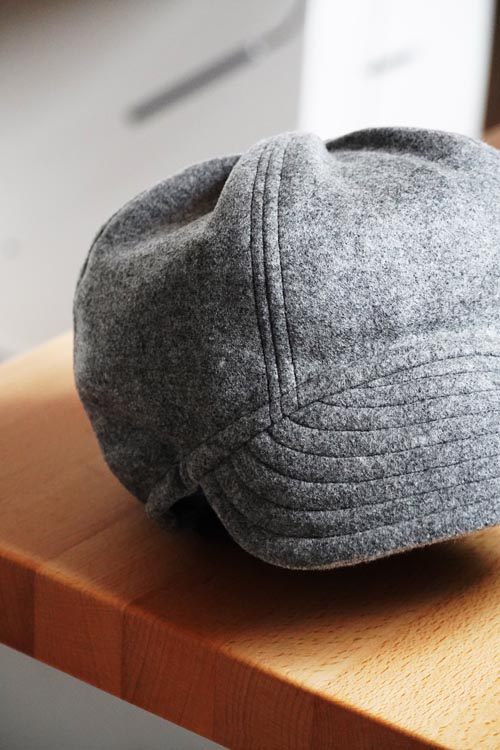

And this is the top of the more shaped version:

Jak ušít bekovku
HOW TO SEW A HAT

Almost there...

12. Connect the peak

Prepare the head part and the peak of the hat.

JAK UŠÍT KŠILTOVKU
HOW TO SEW A HAT

Consider the reinforced part of the peak the bottom part. If you had to reinforce both parts of the peak, it doesn't matter.

Find the center of the front piece of the hat (there should be a mark).

Návod na šití kšiltovky / bekovky - kompletace kšiltu
HOW TO SEW A HAT – CONNECT THE PEAK

The center should also be marked on the peak.

NÁVOD NA ŠITÍ KŠILTOVKY / BEKOVKY - KOMPLETACE KŠILTU A VRCHOVÉ ČÁSTI ČEPICE
HOW TO SEW A HAT – CONNECT THE PEAK

Lay the peak on the hat - upper part of the peak to the reverse side of the hat - and align marks on both pieces.

The side pieces are also marked at the bottom - these marks indicate where the edges of the peak should be.

NÁVOD NA ŠITÍ KŠILTOVKY / BEKOVKY - KOMPLETACE KŠILTU A VRCHOVÉ ČÁSTI ČEPICE
HOW TO SEW A HAT – CONNECT THE PEAK

Place the edges of the peak on these marks.

NÁVOD NA ŠITÍ KŠILTOVKY / BEKOVKY - KOMPLETACE KŠILTU A VRCHOVÉ ČÁSTI ČEPICE
HOW TO SEW A HAT – CONNECT THE PEAK

Attach the peak to the hat - sew about 0.5 cm / 0.2" from the edge.

NÁVOD NA ŠITÍ KŠILTOVKY / BEKOVKY - ZAKONČENÍ SPODNÍHO LEMU DO PRUŽENKY
HOW TO SEW A HAT – BOTTOM HEM

Elastic bottom hem

13. Measure out the required amount of elastic band and prepare it for sewing

Measure the required length of the elastic band directly on your head (see the “Recommended material” section of this article). The elastic band should not be uncomfortably tight, but still tight.

NÁVOD NA ŠITÍ KŠILTOVKY / BEKOVKY - ZAKONČENÍ SPODNÍHO LEMU DO PRUŽENKY
HOW TO SEW A HAT – BOTTOM HEM
NÁVOD NA ŠITÍ KŠILTOVKY / BEKOVKY - ZAKONČENÍ SPODNÍHO LEMU DO PRUŽENKY
HOW TO SEW A HAT – BOTTOM HEM

Fold the band in half and mark the half-point with a pin.

NÁVOD NA ŠITÍ KŠILTOVKY / BEKOVKY - ZAKONČENÍ SPODNÍHO LEMU DO PRUŽENKY
HOW TO SEW A HAT – BOTTOM HEM

14. Sew the hem

Pin the half-point of the band to the middle of the peak edge (face side of the band to the bottom of the peak).

NÁVOD NA ŠITÍ KŠILTOVKY / BEKOVKY - ZAKONČENÍ SPODNÍHO LEMU DO PRUŽENKY
HOW TO SEW A HAT – BOTTOM HEM

Also, pin the band to the edges of the peak - the band should be slightly stretched (see the picture below).

NÁVOD NA ŠITÍ KŠILTOVKY / BEKOVKY - ZAKONČENÍ SPODNÍHO LEMU DO PRUŽENKY
HOW TO SEW A HAT – BOTTOM HEM

Then pin both ends of the band to the rear center seam of the hat. The ends of the band should overlap (about 1 cm / 0.4").

NÁVOD NA ŠITÍ KŠILTOVKY / BEKOVKY - ZAKONČENÍ SPODNÍHO LEMU DO PRUŽENKY
HOW TO SEW A HAT – BOTTOM HEM

Sew the band to the entire circumference of the hat - sew about 0.5 - 0.75 cm (0.2"–0.3") from the edge. When sewing, it is necessary to stretch the band quite a lot so that it fits around the entire circumference of the hat. It should be stretched the most in the sides and back of the hat (the part below the peak should be somewhat looser).

NÁVOD NA ŠITÍ KŠILTOVKY / BEKOVKY - ZAKONČENÍ SPODNÍHO LEMU DO PRUŽENKY
HOW TO SEW A HAT – BOTTOM HEM
NÁVOD NA ŠITÍ KŠILTOVKY / BEKOVKY - ZAKONČENÍ SPODNÍHO LEMU DO PRUŽENKY
HOW TO SEW A HAT – BOTTOM HEM

Then flip the upper part of the band to the inside of the hat. Pin the band in several places.

NÁVOD NA ŠITÍ KŠILTOVKY / BEKOVKY - ZAKONČENÍ SPODNÍHO LEMU DO PRUŽENKY
HOW TO SEW A HAT – BOTTOM HEM

Now sew on the face side of the band (inside of the hat) with a straight stitch. You should pull on the hem a little when sewing so that it remains slightly elastic.

NÁVOD NA ŠITÍ KŠILTOVKY / BEKOVKY - ZAKONČENÍ SPODNÍHO LEMU DO PRUŽENKY
HOW TO SEW A HAT – BOTTOM HEM

This is what the hat should look like after that - the hem is tighter around the sides & back of the hat and looser around peak (thanks to which the peak is not deformed):

NÁVOD NA ŠITÍ KŠILTOVKY / BEKOVKY - ZAKONČENÍ SPODNÍHO LEMU DO PRUŽENKY
HOW TO SEW A HAT – BOTTOM HEM

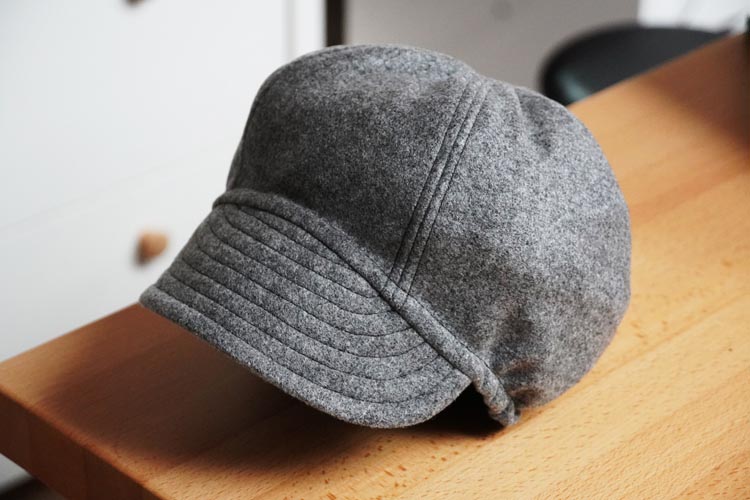

And it is done! That wasn’t that hard at all, was it?

Jak ušít kšiltovku (návod na šití + střih)

Sewing pattern

You can get the pattern for this hat (9 sizes, two styles) here:

SEWING PATTERN - UNISEX NEWSBOY HAT GO OUT

Don't forget to share your joy with others!

Did you like today's instructions and pattern? If so, share it with your friends and tell me about it in the comments section below. I look forward to your feedback! ♥
